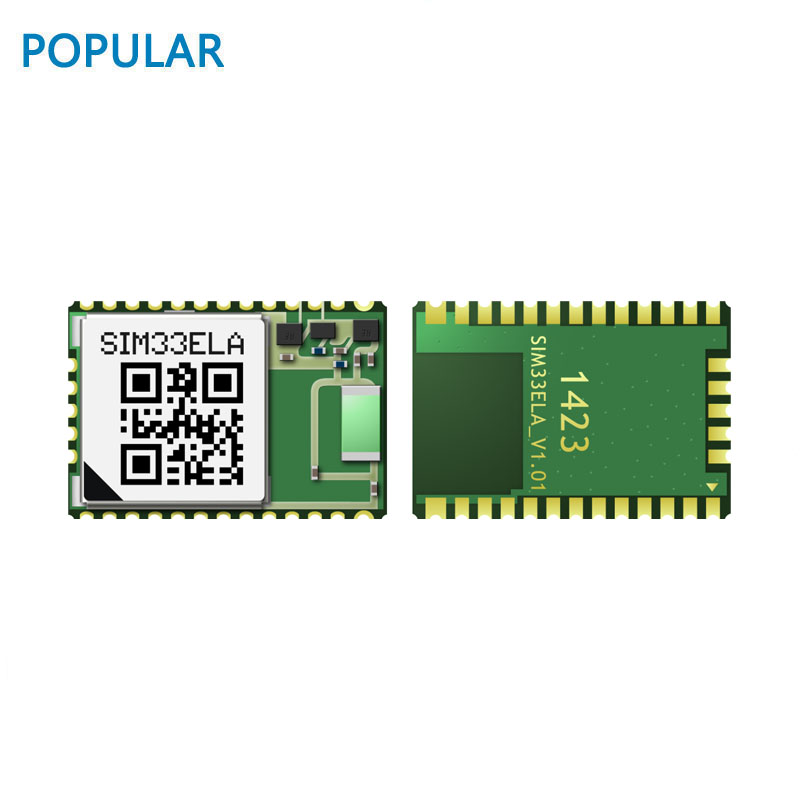

SIMCom presents a high performance GPS module accompany with GNSS antenna - SIM33ELA. This is a standalone GNSS module embedded a linear antenna . Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is very easy to embed into customer’s application.
Mechanical data
• Dimensions: 14*9.6*2.15 mm
• Weight: 0.5g
Features
• Support GPS/GLONASS/Galileo/QZSS
• Support EASYTM self-generated orbit prediction
• Support EPOTM orbit prediction
• Support AGPS
• Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
• Support Jamming removing function
• Low-noise amplifier has been integrated
Interfaces
• Serial interfaces
- UART
• Digital I/O
- TIMEMARK(PPS)
- 3D-FIX
- FORCE-ON
• Protocols
- NMEA
- PMTK
Support evaluation products
• SIM68 EVB KIT with USB V2.0 full speed interface
Electrical data
• Power supply: +2.8V ~4.3V
• Backup power: +2.0V ~4.3V
• Power consumption2: 3.3V (typical)
- Acquisition: 25mA
- Tracking: 20mA
- Backup: 14μA
|
Performance data
• Receiver type: 33 tracking / 99 acquisition- channel GNSS receiver
• Max. update rate: 10Hz
• Sensitivity1
- Tracking: -165dBm
- Reacquisition: -160dBm
- Cold starts: -147dBm
• Time-To-First-Fix2
- Cold starts: 28s (typical)
- Warm starts: 26s
- Hot starts: <1s
- EPO Assist: 13s (CTTFF)
• Accuracy
- Automatic Position3: 2.5m CEP
- Speed4: 0.1m/s
• Operation temperature: -40℃~+85 ℃
Certifications
• CE
|
